The Impact of Guideway and Ball Screw Lubrication on CNC Machine Accuracy

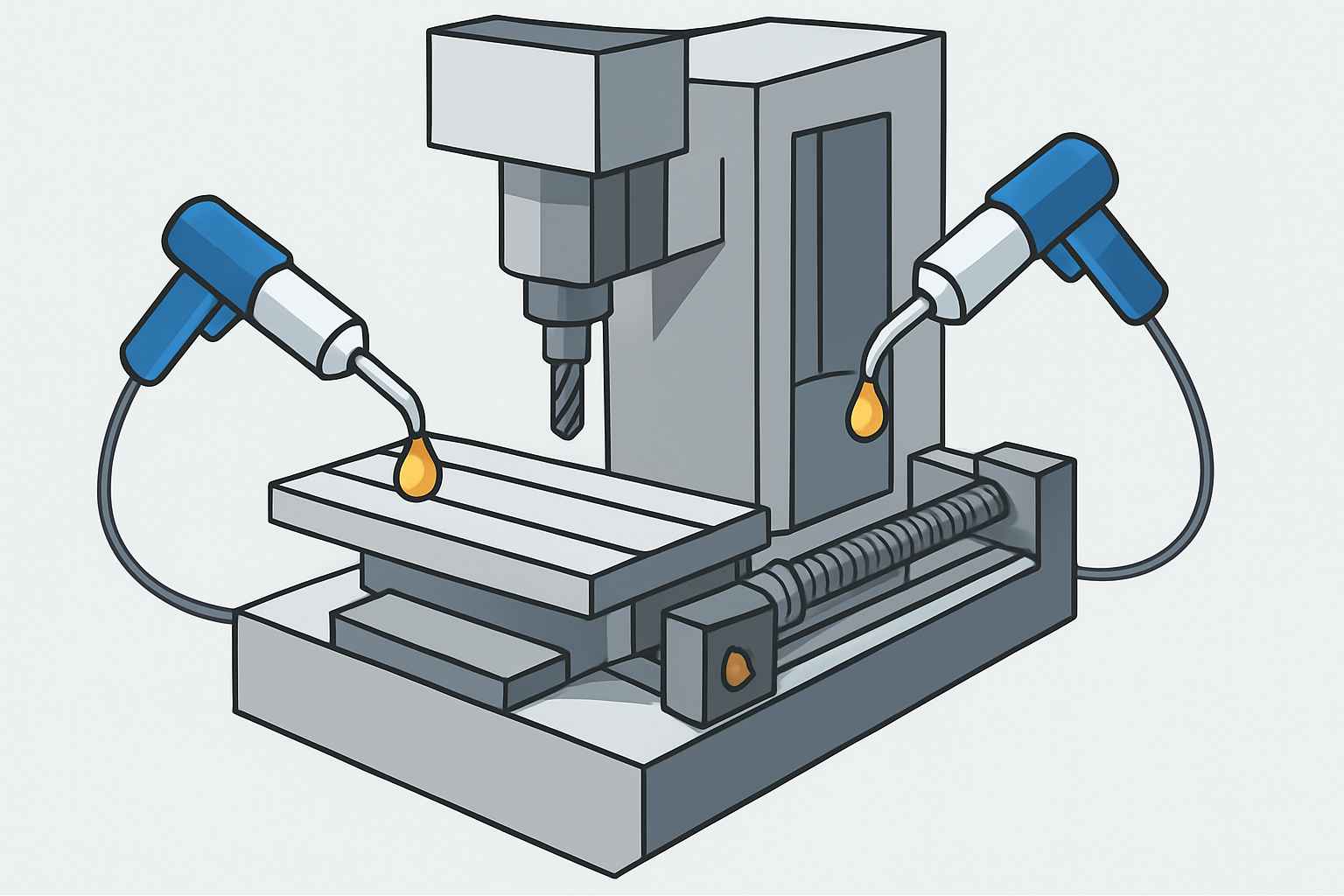

In CNC machining, guideways and ball screws are critical components that directly influence machining precision and stability. Proper lubrication minimizes friction and wear, extends service life, and ensures long-term accuracy.

1. Importance of Guideway Lubrication

• Reduced friction: A lubricant film lowers resistance and enables smoother movement.

• Anti-stick-slip: Prevents low-speed stick-slip and improves positioning accuracy.

• Protection: Forms a barrier against corrosion, cutting fluids, and contaminants.

2. Role of Ball Screw Lubrication

• Transmission accuracy: Lubrication reduces rolling friction, enhancing efficiency and repeatability.

• Wear and heat reduction: Grease minimizes ball wear and prevents thermal deformation.

• Extended service life: High-performance lubrication reduces downtime and costs.

3. Risks of Improper Lubrication

• Insufficient lubrication leads to dry friction, overheating, and accelerated wear.

• Wrong grease may cause excessive resistance, stick-slip, or even seizure.

• Over-lubrication causes grease buildup, attracting chips and dust, reducing precision.

4. Best Practices

• Use low-volatility, shear-stable, anti-wear greases for guideways and ball screws.

• Establish regular relubrication schedules.

• Employ automatic lubrication systems for consistent application.

• Match grease formulation to conditions (high-speed, heavy-load, precision machining).

Conclusion
Proper lubrication of guideways and ball screws is vital for CNC machining accuracy and reliability. Following best practices ensures superior product quality and extends machine life.
